QC Gate
The pressure of speed and subtle errors are straining manual QC processes. Small mistakes lead to huge waste and threaten reputation. What's the solution for 100% quality control? It's QC Gate – an automated visual inspection machine, a digital line of defense that helps businesses stop product defects at the source.
WHAT IS A QC GATE? DEFINITION AND NATURE

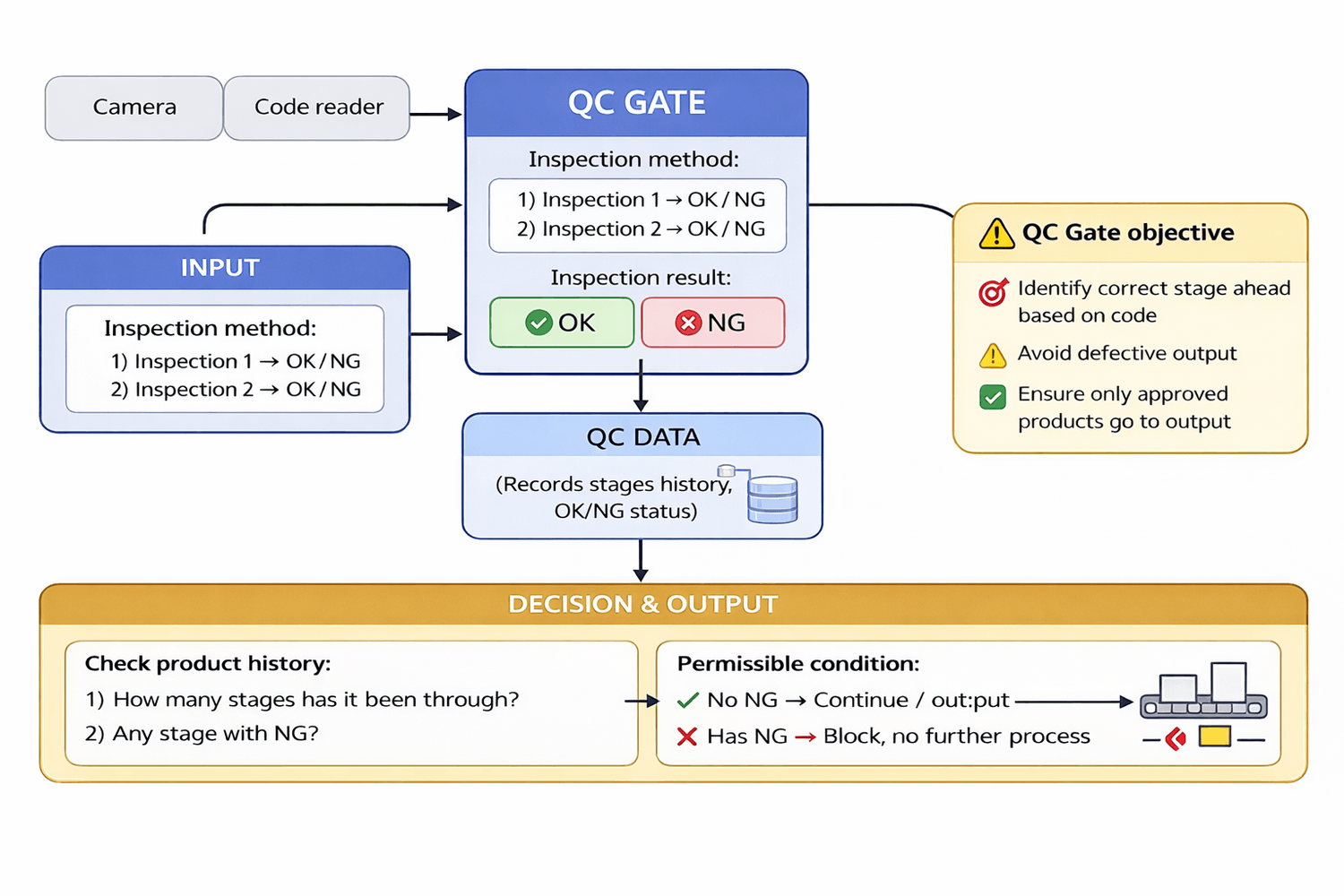

A QC Gate (Quality Control Gate) is a strategically established quality control point at each critical stage in the production line.
It acts as a smart "gatekeeper," using QR codes to read the preceding stage, which is responsible for assessing product quality on the spot before it is allowed to move on to the next stage.
QC Gate solutions offer many practical benefits, including improving product quality, preventing the spread of defects, optimizing production processes, and minimizing waste. At the same time, QC Gate helps save labor costs, standardize inspections, and reduce instances of omissions or skipped steps. This is a crucial tool for businesses to maintain and enhance product consistency in a modern and automated production environment.
THE CORE PURPOSE OF SETTING UP A QR CODE
Implementing QC Gate is not just a simple inspection process, but also serves strategic objectives:
Traceability: Use QR codes or other identification methods to quickly determine which stages the product has gone through.
Instant classification: Classify products into two distinct groups: OK (Pass) and NG (Fail) .
Preventing the spread of defects: This is the most important function of the system, allowing for the complete elimination of defective products right on the production line, significantly reducing reprocessing costs, minimizing waste, and improving overall quality control efficiency.
Automation & Recording: Automate the process of inspecting and recording quality status, reducing reliance on manual operations and eliminating errors.
CURRENT SITUATION AND NEEDS FOR AUTOMATION IN QC GATE
Currently, many factories are investing heavily in modern machinery to automate production, replacing a large number of manual laborers.
However, the worrying reality is that, despite advanced production machinery, many businesses lack a comprehensive and automated quality control mechanism. This deficiency, particularly the lack of automated quality control (QC) during production, reduces the overall efficiency of automated production lines. QC Gate is the solution to fill this gap.
THE CORE PURPOSE OF SETTING UP A QR CODE
Implementing QC Gate is not just a simple inspection process, but also serves strategic objectives:
Traceability: Use QR codes or other identification methods to quickly determine which stages the product has gone through.
Instant classification: Classify products into two distinct groups: OK (Pass) and NG (Fail).
Preventing the spread of defects: This is the most important role – absolutely preventing NG products from continuing to move, helping to reduce repair costs and scrap at the end of the production line.
Automation & Recording: Automate the process of inspecting and recording quality status, reducing reliance on manual operations and eliminating errors.
MACHINE STRUCTURE AND FUNCTION
MACHINE STRUCTURE:
Mechanical and control equipment:
Includes machine frame, PLC, communication module, high-speed counter, encoder, etc.
Optical support system (lighting and camera lenses)
Includes lighting and camera lenses…
The camera processes and analyzes images,
and has the function of capturing, processing, and identifying defective products.
Monitoring and reporting software:
Features include image processing, data analysis, and the provision of product quality inspection results and statistics.
MACHINE FUNCTIONS :
Specimen comparison:
Using this procedure, the AOI automated optical inspection system will compare the acquired image with a pre-programmed sample image.
Object detection:
Automated optical inspection systems can be integrated into the production line immediately after the welding process. In this way, the system can be used to detect problems early in the manufacturing process.
Product classification and fault tracing:
The machine can detect incorrect components, missing components, or incorrectly positioned components, and then classify the product as a fault.
Surface inspection
detects various surface defects such as bumps, scratches, and stains, as well as more common dimensional errors like open circuits, short circuits, and solder too thin. This determines whether the product can proceed to the next stage.
SSG's Implementation Capabilities
SaoMai Solutions Group (SSG) possesses the capability to deploy QC Gate solutions – automated visual inspection machines – enabling businesses to achieve 100% quality control at every stage of production. SSG designs and integrates a comprehensive system encompassing mechanical components, PLCs, industrial cameras, QR codes, and data analysis software. This allows for instant defect detection and classification, prevents the spread of errors, and ensures only products meeting standards are allowed to proceed to the next stage or be shipped. With a data-driven quality management approach, SSG's QC Gate not only inspects but also supports analysis, improvement, and optimization of the entire production process within a Smart Factory environment.
CONCLUSION: BUILDING A DATA-BASED PRODUCTION MODEL
QC Gate is not just an inspection tool, but a data-driven quality management system. The ultimate goal is:
Clarify the entire production and quality process.
Develop specific solutions for each problem.
Optimize production by making decisions based on transparent quality data.
Implementing QC Gate is a strategic step that helps businesses enhance their competitiveness, ensure output quality, and move towards a smart, lean factory model.
